UF2A THRU UF2K are surface mount ultra fast rectifiers, the product has glass passivated junction, ideal for surface mount applications and low leakage current characteristics.
The UF2A‑UF2K series are surface‑mount ultra fast rectifiers offered by DC Components. They are supplied in an SMB (DO‑214AA) package and are suitable for applications requiring low leakage current and glass‑passivated junctions. The devices are rated for a voltage range of 50 V to 800 V and a continuous forward current of 2.0 A.

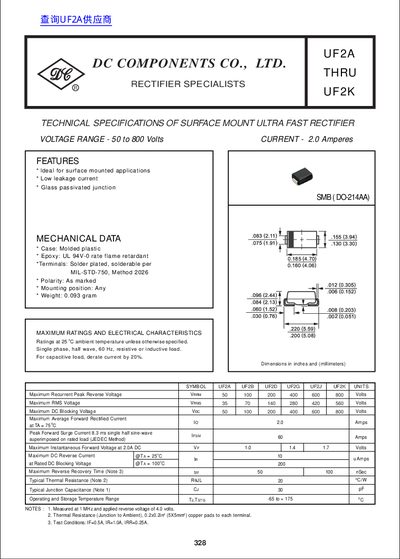

The datasheet provides maximum ratings, electrical characteristics, and typical performance curves such as forward current derating, surge current, and reverse recovery time. Mechanical dimensions, weight (0.093 g), polarity marking, and operating temperature range (‑65 °C to +175 °C) are also listed.
| Voltage Range | 50 to 800 V |
|---|---|
| Continuous Forward Current | 2.0 A |
| Package Type | SMB (DO‑214AA) |
| Polarity | As marked |
| Weight | 0.093 gram |
| Operating Temperature Range | -65 °C to +175 °C |
It operates from 50 V to 800 V.
The device is rated for 2.0 A continuous forward current.
It uses an SMB (DO‑214AA) surface‑mount package.
The component can operate from –65 °C to +175 °C.
