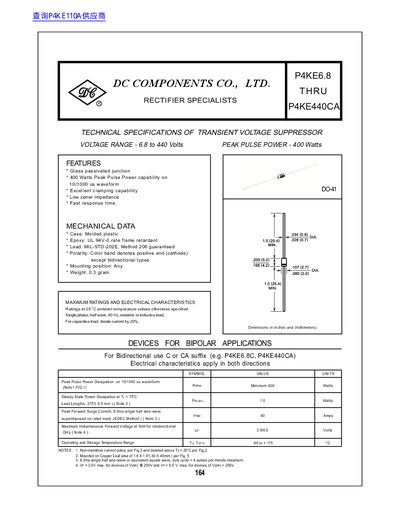

DC COMPONENTS P4KE6.8 THRU P4KE440CA

This document introduces the features and characteristics of the X brand Y model product. The product uses XXX technology and has XXXX advantages.

Brand: DC
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 927 KB
Published: 06 June, 2012
Updated: 30 September, 2023
MD5 checksum: 9F668399C31904DB7DF21D81FAB92454
PDF: DC COMPONENTS P4KE6.8 THRU P4KE440CA PDF

About this manual

This document provides technical specifications for the DC Components P4KE series of Transient Voltage Suppressors (TVS). The devices feature a glass passivated junction with a peak pulse power capability of 400 Watts on a 10/1000 microsecond waveform. They are available in unidirectional and bidirectional configurations, indicated by the 'A' or 'CA' suffix respectively.

What's inside

Features
Mechanical Data
Maximum Ratings
Electrical Characteristics
Rating Curves
Part Number Specifications

Specifications

Peak Forward Surge Current (Ipp)	40 Amps
Operating Temperature Range	-65 to +175 °C

Frequently asked questions

How do I identify bidirectional types?

Bidirectional use is indicated by adding a 'C' or 'CA' suffix to the part number, such as P4KE6.8C.

What is the maximum operating temperature?

The maximum storage and operating temperature range is -65 to +175 °C.

Download PDF (927 KB)
