This document is the user manual for the Stirling electric heater, which introduces the use and precautions of the electric heater.

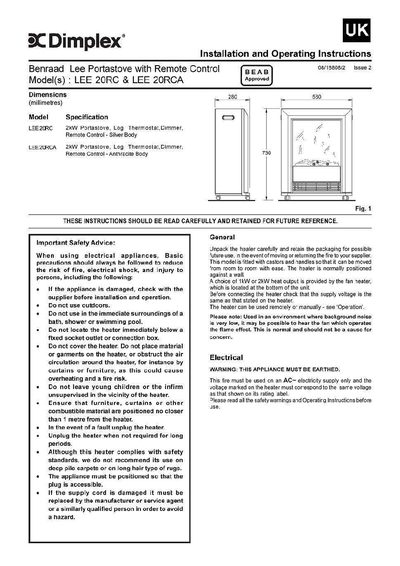

The Dimplex LEE 20RC and LEE 20RCA are 2 kW portable fan heaters with optional 1 kW output, remote control, timer and flame effect. They feature castors and handles for easy movement and are intended for indoor use against a wall.
These instructions provide safety warnings, unpacking steps, electrical requirements, detailed operation of manual switches, thermostat, timer, flame control and remote control, as well as maintenance procedures such as lamp replacement, cleaning and safety cut‑out handling.
| Power output | 2 kW (selectable 1 kW or 2 kW) |
|---|---|
| Remote control range | 15 m |
| Timer increment | 0.5 hour per press, up to 7.5 hours |
| Replacement lamp type | GOW E14 SES Clear Candle lamp |
Press switch 4 the desired number of times; each press adds 30 minutes, allowing settings from 0.5 hour up to 7.5 hours.
Remove the four screws on the back panel, slide the panel off, unscrew the defective lamp and replace it with a GOW E14 SES Clear Candle lamp, then re‑fit the panel and screws.
The remote control uses two AAA batteries, which must be installed after opening the battery cover on the back of the remote.
