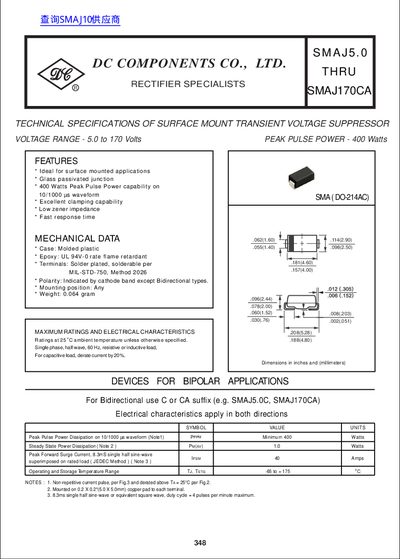

RDC Components SMAJ5.0 THRU SMAJ170CA Transient Voltage Suppressors Datasheet

This document is about the technical specifications of SMAJ5.0 THRU SMAJ170CA SMA ( DO-214AC) product, mainly including the rated voltage, rated current, peak surge current, and continuous power parameters

Brand: DC
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 930 KB
Published: 11 June, 2012
Updated: 30 September, 2023
MD5 checksum: 30A58DC9FE054A180ECCC656304829F1
PDF: RDC Components SMAJ5.0 THRU SMAJ170CA Transient Voltage Suppressors Datasheet PDF

About this manual

This datasheet provides technical specifications, mechanical data, and electrical characteristics for the SMAJ (400W) series of surface mount transient voltage suppressors. The devices are designed for bipolar applications and are available in unidirectional and bidirectional configurations.

What's inside

Dimensions
Electrical Characteristics
Mechanical Data
Maximum Ratings
Features
Rating and Characteristic Curves

Specifications

Operating and Storage Temperature Range	-65 to + 1750C
Peak Forward Surge Current	1.0 Amps
Voltage Range	5.0 to 170 Volts
Peak Pulse Power	400 Watts
Case Material	Molded plastic
Epoxy Rating	UL 94V- 0

Frequently asked questions

What is the voltage range for the SMAJ series?

The voltage range is from 5.0 to 170 Volts.

What is the peak pulse power capability?

The devices have a peak pulse power capability of 400 Watts on a 10/1000 µs waveform.

What is the operating temperature range?

The operating and storage temperature range is -65 to + 175 degrees Celsius.

Download PDF (930 KB)
