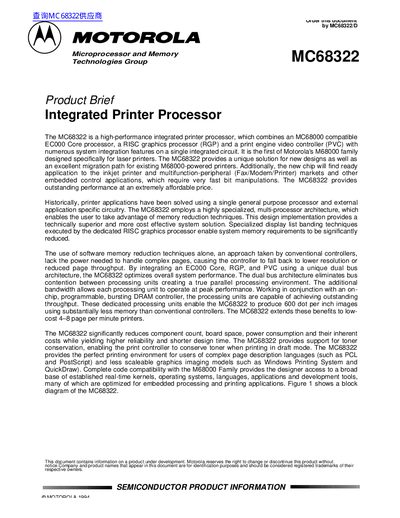

The Motorola MC68322 is a high-performance integrated printer processor, which combines an MC68000 compatible EC000 Core processor, a RISC graphics processor (RGP) and a print engine video controller (PVC) with numerous system integration features on a single integrated circuit. It is the first of Motorola's M68000 family designed specifically for laser printers. The MC68322 provides a unique solution for new designs as well as an excellent migration path for existing M68000-powered printers. Additionally, the new chip will find ready application to the inkjet printer and multifunction-peripheral (Fax/Modem/Printer) markets and other embedded control applications, which require very fast bit manipulations. The MC68322 provides outstanding performance at an extremely affordable price.
The Motorola MC68322 is a specialized integrated circuit designed specifically for laser printers. It combines an MC68000 compatible EC000 Core processor, a RISC Graphics Processor (RGP), and a Print Engine Video Controller (PVC) on a single chip to optimize system performance and reduce component count.
The device utilizes a unique dual bus architecture to eliminate contention between processing units, enabling parallel processing. It supports high-resolution printing up to 600 DPI at speeds of 8 pages per minute using memory reduction techniques like banding and run-length encoding.
| Core Compatibility | MC68000 Family |
|---|---|
| Address Range | 256 Mbyte |
| Resolution | 600 DPI |
| Throughput | 8 PPM |
| Operation Frequency | 16MHz or 20MHz |
| Package Type | 160 Pin Plastic Quad Flat Pack (QFP) |
The dedicated graphics bus allows performance of up to 8 pages per minute at a resolution of 600 dots per inch.
The DMA controller supports bidirectional communication transfers at a rate of 2 Mbyte per second.
The MC68322 is capable of operating at either 16MHz or 20MHz.
