This document describes the features and characteristics of the MUR1505 to MUR1560 series 15 Amp Super Fast Glass Passivated Rectifiers, including operating temperature range, maximum recurrent peak reverse voltage, maximum RMS voltage, maximum DC blocking voltage, average forward current, peak forward surge current, maximum forward voltage drop per element, and maximum DC reverse current.

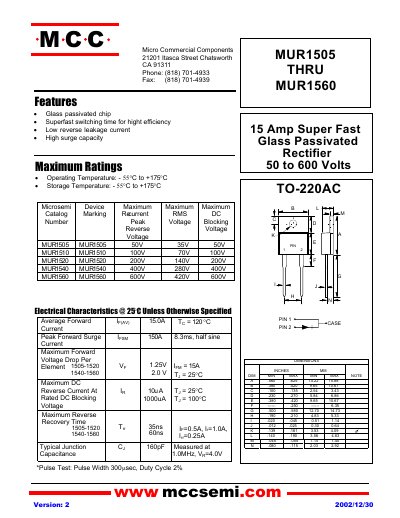

This document is a datasheet for the Micro Commercial Components (MCC) series of Super Fast Glass Passivated Rectifiers, covering models from MUR1505 to MUR1560. The devices are designed with high surge capacity and low reverse leakage current, suitable for applications requiring efficient switching.
| Operating Temperature Range | -55°C to +175°C |
|---|---|
| Storage Temperature Range | -55°C to +175°C |
| Average Forward Current (I_F(AV)) | 15.0A |
| Peak Forward Surge Current | 150A |
The devices are rated to operate from -55°C to +175°C.
The rectifiers can handle a peak forward surge current of 150A for an 8.3ms half sine pulse.
The maximum reverse current is rated at 10uA when the temperature is 25°C.
