This document describes the features and characteristics of the MUR105 to MUR1100 series 1 Amp super fast recovery rectifiers, including high surge capability, low forward voltage drop, high current capability, and super fast switching speed. It also lists the maximum recurrent peak reverse voltage, maximum RMS voltage, and maximum DC blocking voltage for different models.

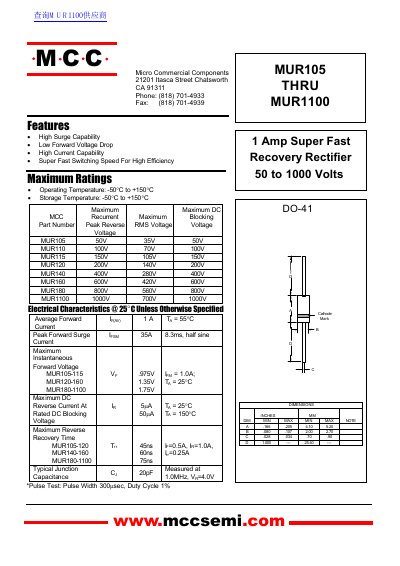

This document is a datasheet for the Micro Commercial Components MUR105 through MUR1100 series of 1 Amp Super Fast Recovery Rectifiers. The components are designed with high surge capability, low forward voltage drop, and high current capability for high efficiency applications.
| Average Forward Current | 1A |
|---|---|
| Operating Temperature | -50°C to +150°C |
| Storage Temperature | -50°C to +150°C |
| Maximum Instantaneous Forward Voltage (MUR120-160) | 1.35V |
| Maximum Instantaneous Forward Voltage (MUR180-1100) | 1.75V |
| Maximum Reverse Recovery Time (MUR140-160) | 60ns |
The package type is DO-4.
The pulse test uses a width of 300psec and a duty cycle of 1%.
