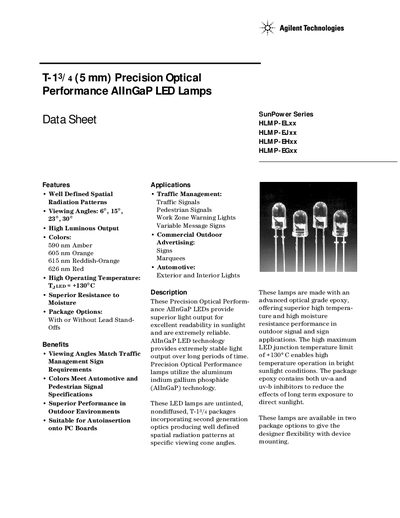

The Precision Optical Performance AlInGaP LED lamps provide superior light output for excellent readability in sunlight and are extremely reliable. These LED lamps are untinted, nondiffused, T-13/4 packages incorporating second generation optics producing well defined spatial radiation patterns at specific viewing cone angles. These lamps are made with an advanced optical grade epoxy, offering superior high temperature performance.
Agilent Technologies presents the T-13/4(5 mm) Precision Optical Performance AllnGaP LED Lamps, designed for superior light output and excellent readability in sunlight. These lamps utilize aluminum indium gallium phosphide (AlInGaP) technology to provide extremely stable light output over long periods. The SunPower Series features advanced optical grade epoxy, offering superior high-temperature and high-moisture resistance suitable for outdoor signal and sign applications, with a maximum LED junction temperature limit of +130°C.
| Technology | AlInGaP |
|---|---|
| Package Type | T-13/4(5 mm) |
| Viewing Angles | 6°, 15°, 23°, 30° |
| Colors | 590 nm Amber, 605 nm Orange, 615 nm Reddish-Orange, 626 nm Red |
| Maximum Operating Temperature | +130°C |
| Package Options | With or Without Lead Standoffs |
The lamps are available with viewing angles of 6°, 15°, 23°, and 30°.
The series offers Amber (590 nm), Orange (605 nm), Reddish-Orange (615 nm), and Red (626 nm).
Yes, they are suitable for outdoor environments due to superior moisture resistance and UV inhibitors.
