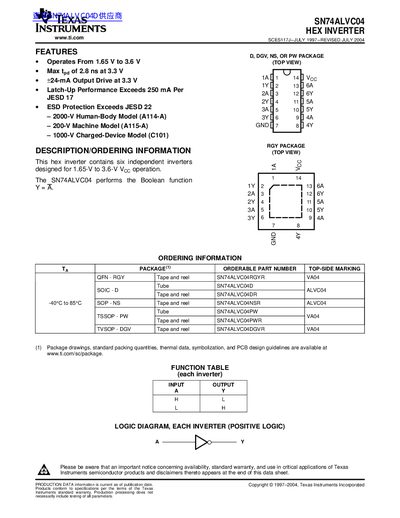

This datasheet provides detailed information on the SN74ALVC04 HEX INVERTER, including operating voltage, output drive current, and package type.
The document describes the SN74ALVC04, a hex inverter designed for operation between 1.65 V and 3.6 V supply voltages. It features six independent inverters performing the Boolean function Y=A and offers an output drive of +24 mA at 3.3 V.
| Supply voltage range | 1.65 V to 3.6 V |
|---|---|
| Max propagation delay (tpg) | 2.8 ns at 3.3 V |
| Output drive current | +24 mA at 3.3 V |
| Latch-up performance | Exceeds 250 mA |
| Operating temperature range | -40°C to 85°C |
Each inverter performs the Boolean function Y=A.
The device operates with a supply voltage (Vcc) between 1.65 V and 3.6 V.
