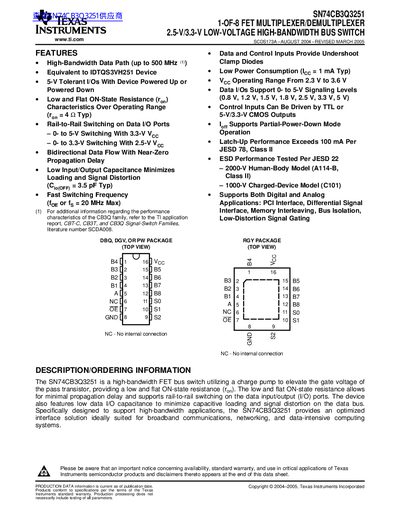

SN74CB3Q3251 is a low-voltage high-bandwidth bus switch from TI, with a working voltage range of 2.3V-3.6V and support for 0-5V signal levels.
The SN74CB3Q3251 is a 1-of-8 multiplexer/demultiplexer utilizing a charge pump to elevate the gate voltage of the pass transistor. This design provides a low and flat ON-state resistance, enabling minimal propagation delay and supporting rail-to-rail switching on data input/output ports. The device features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus.
| High-Bandwidth Data Path | up to 500 MHz |
|---|---|
| Data I/O Voltage Support | 0- to 5-V |
| Operating Temperature Range | -40°C to 85°C |
Yes, the device features 5-V tolerant I/Os and can support 0- to 5-V signaling levels on the data ports.
The maximum switching frequency for the control input is 20 MHz.
