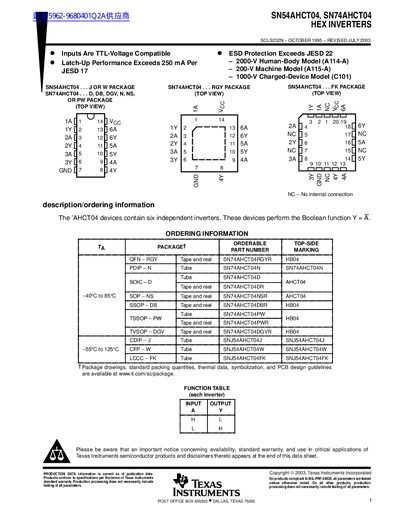

SN54AHCT04, SN74AHCT04 HEX INVERTERS are six independent inverters manufactured by Texas Instruments. They perform the Boolean function Y = A.
The document describes the SN54AHCT04 and SN74AHCT04, which are hex inverters containing six independent inverters that perform the Boolean function Y = A. These devices feature TTL-voltage compatible inputs and exceed specific ESD protection standards.
The datasheet details absolute maximum ratings such as supply voltage ranges from 4.5V to 5.5V for commercial grade (SN74) and military grade (SN54). It also lists electrical characteristics including high-level output current of -8 mA and low-level output current of 8 mA, along with switching times under various load conditions.
| High-Level Input Voltage | 2 V |
|---|---|
| Low-Level Input Voltage | 0.8 V |
The devices perform the Boolean function Y = A.
Yes, the inputs are TTL-voltage compatible.
