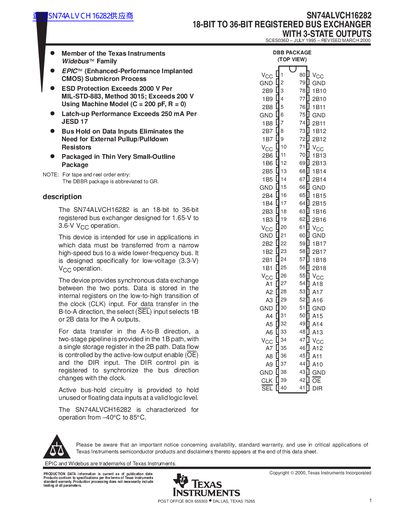

This document is the user manual of SN74ALVCH16282 18-BIT TO 36-BIT REGISTERED BUS EXCHANGER WITH 3-STATE OUTPUTS
The SN74ALVCH16282 is a high-speed device intended for transferring data from a narrow high-speed bus to a wide lower-frequency bus. It features synchronous data exchange between two ports, utilizing internal registers on the clock transition and active bus-hold circuitry to maintain valid logic levels on unused inputs.
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Package Type | DBB Package (Widebus Family) |
The device is characterized for operation up to 85°C.
