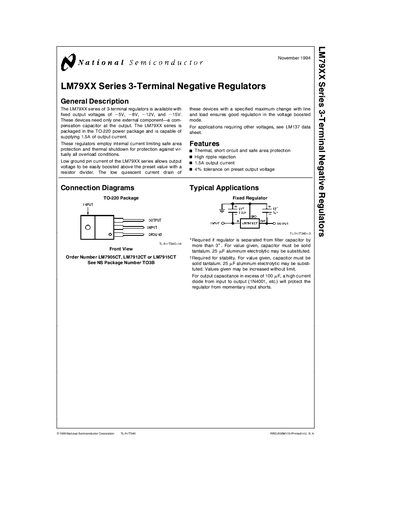

LM79XX Series 3-Terminal Negative Regulators
The LM79XX series consists of 3-terminal negative voltage regulators available with fixed output voltages of -5V, -8V, -12V, and -15V. These devices are packaged in the TO-220 power package and are capable of supplying 1.5A of output current. They employ internal current limiting, safe area protection, and thermal shutdown to protect against virtually all overload conditions.
| Output Voltage | -5V, -8V, -12V, -15V |
|---|---|
| Output Current | 1.5A |
| Package Type | TO-220 |
| Quiescent Current | 2 mA (Typ) |
| Ripple Rejection | 54 dB (Typ) |
The series is available with fixed output voltages of -5V, -8V, -12V, and -15V.
The devices are capable of supplying 1.5A of output current.
These devices need only one external component—a compensation capacitor at the output.
