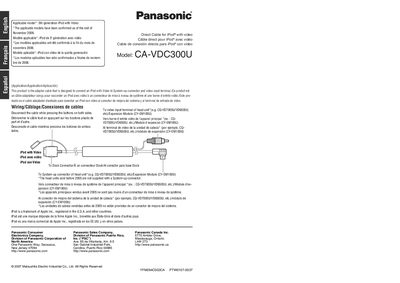

Panasonic CA-VDC300U Direct Cable for iPod with Video User Manual

About this manual

The document describes the Panasonic CA-VDC300U, an adaptor cable designed to connect a 5th generation iPod with Video to a System-up connector and video input terminal on compatible car audio head units. The manual includes wiring diagrams showing connections to the head unit's system-up connector or expansion module (CY-EM100U) and the iPod's dock connector.

What's inside

• Applicable models
• Wiring/Cablage/Conexiones de cables
• Limited Warranty Coverage
• Parts and Labor Warranty Periods
• Exclusions and Limitations

Frequently asked questions

Which iPod models are compatible with this cable?

This product is designed for the 5th generation iPod with Video.

What head units are compatible with this cable?

It connects to System-up connectors on models like CQ-VD7005U/VD6505U or the Expansion Module CY-EM100U.
