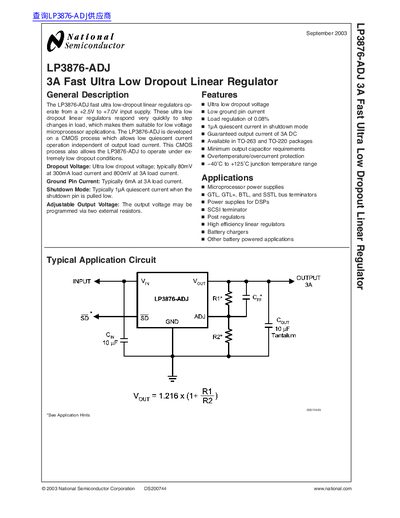

LP3876-ADJ is a 3A fast ultra low drop-out linear regulator from TI, operating from a +2.5V to +7.0V input supply. It has ultra low dropout voltage, low ground pin current, load regulation of 0.08%, 1µA quiescent current in shutdown mode, guaranteed output current of 3A DC, available in TO-263 and TO-220 packages, minimum output capacitor requirements, overtemperature/overcurrent protection, −40˚C to +125˚C junction temperature range. It is suitable for microprocessor power supplies, GTL, GTL+, BTL and SSTL bus terminators, DSP power supplies, SCSI terminator, post regulators, high efficiency linear regulators, battery chargers and other battery powered applications.
The LP3876-ADJ is a 3A fast ultra low dropout linear regulator designed for microprocessor applications. It operates from a +2.5V to +7.0V input supply and features an ultra-low dropout voltage, typically 80mV at 300mA and 800mV at 3A load current. The device is developed on a CMOS process to allow low quiescent current operation independent of the output load current.
| Output Current | 3A DC |
|---|---|
| Dropout Voltage (300mA) | Typically 80mV |
| Dropout Voltage (3A) | 800mV |
| Quiescent Current | Typically 6mA |
| Shutdown Current | Typically 1A |
| Operating Junction Temperature | -40°C to +125°C |
| Package Types | TO-263 and 70-220 |
The typical dropout voltage is 800mV at 3A load current.
The device guarantees an output current of 3A DC.
The LP3876-ADJ is available in TO-263 and 70-220 packages.
