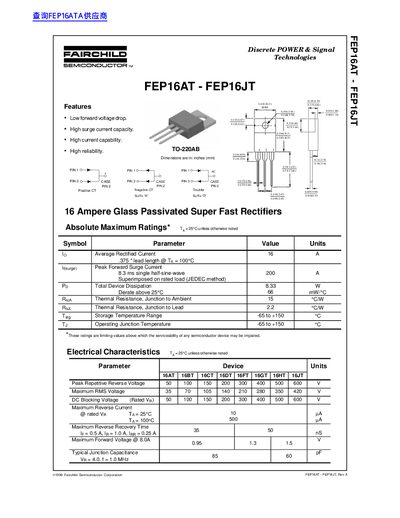

This datasheet provides the absolute maximum ratings, electrical characteristics, features and parameters of FEP16AT - FEP16JT 16 Ampere Glass Passivated Super Fast Rectifiers.
This document provides design specifications and electrical characteristics for the Fairchild FEP16AT through FEP16JT series of 16 Ampere glass passivated super fast rectifiers. The devices feature low forward voltage drop, high surge current capacity, and high reliability in a TO-220AB package.
| Average Rectified Current | 16 A |
|---|---|
| Peak Forward Surge Current | 200 A |
| Total Device Dissipation | 8.33 W |
| Maximum Forward Voltage @ 8.0A | 0.95 V |
The storage temperature range is -65 to +150 °C.
The operating junction temperature range is -65 to +150 °C.
The maximum reverse current at rated Vp and Ta = 100°C is 500 µA.
