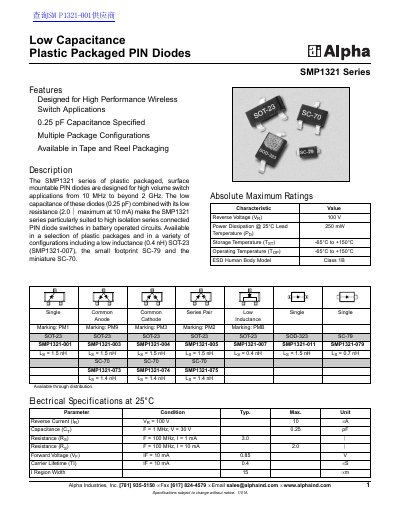

The SMP1321 series of plastic packaged, surface mountable PIN diodes are designed for high volume switch applications from 10 MHz to beyond 2 GHz. The low capacitance of these diodes (0.25 pF) combined with its low resistance (2.0 Ω maximum at 10 mA) make the SMP1321 series particularly suited to high isolation series connected PIN diode switches in battery operated circuits. Available in a selection of plastic packages and in a variety of configurations including a low inductance (0.4 nH) SOT-23 (SMP1321-007), the small footprint SC-79 and the miniature SC-70.
The Alpha SMP1321 series consists of low capacitance plastic packaged PIN diodes designed for high volume switch applications from 10 MHz to beyond 2 GHz. These diodes feature a specified capacitance of 0.25 pF and a low resistance of 2.0 Ω maximum at 10 mA, making them suitable for high isolation series connected PIN diode switches in battery operated circuits.
| Frequency Range | 10 MHz to beyond 2 GHz |
|---|---|
| Capacitance | 0.25 pF |
| Resistance | 2.0 Ω maximum at 10 mA |
| Reverse Voltage | 100 V |
| Power Dissipation | 250 mW |
| Operating Temperature | -65°C to +150°C |
| Forward Voltage | 0.85 V |
| Carrier Lifetime | 0.4 us |
The capacitance is specified at 0.25 pF.
The maximum reverse voltage rating is 100 V.
The operating temperature range is from -65°C to +150°C.
