Agilent Hi-Plex Ca Column Sugar Alcohol Analysis Application Note

This application note describes the USP analysis of seven sugar alcohols on an Agilent Hi-Plex Ca column, including sample preparation, chromatographic conditions, and results.

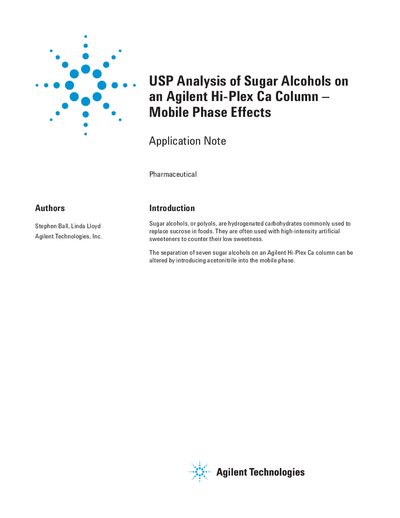

Agilent Hi-Plex Ca Column Sugar Alcohol Analysis Application Note - cover page
Brand
Agilent
Category
Other
Document type
Application Note
Language
English
Pages
2
File format
PDF
File size
189 KB
Published
11 June, 2012
Updated
30 September, 2023
MD5 checksum
1DEEC5237C16A07E3E8AB8E4036BC2F7

About this manual

This document details the analysis of seven sugar alcohols (iso-erythritol, adonitol, arabitol, mannitol, xylitol, dulcitol, and sorbitol) using an Agilent Hi-Plex Ca column. The authors demonstrate that using pure water as the mobile phase results in poor separation, with several compounds co-eluting.

To achieve better resolution, the document recommends introducing acetonitrile into the mobile phase. Specifically, a 30:70 ratio of acetonitrile to water at a flow rate of 0.20 mL/min and a temperature of 90°C significantly improves selectivity, doubles retention time, and separates all seven compounds.

What's inside

  • Introduction
  • Experimental Conditions
  • Mobile Phase Effects
  • Sample Preparation
  • Chromatogram Comparison
  • Conclusion

Specifications

ColumnAgilent Hi-Plex Ca USP L19, 4.0 x 250 mm, 8 pm
Flow rate (Optimized)0.20 mL/min
Temperature90°C
DetectorRI
Injection volume10 uL

Frequently asked questions

How can the separation of sugar alcohols on an Agilent Hi-Plex Ca column be improved?

Introducing acetonitrile into the mobile phase significantly affects selectivity and results in better separation.

What mobile phase composition is recommended for separating seven sugar alcohols?

A mobile phase of 30:70 acetonitrile:100% DI H2O is recommended.

What is the effect of adding acetonitrile to the mobile phase?

It gives extra retention for the sugar alcohols and increases the resolution between them.
