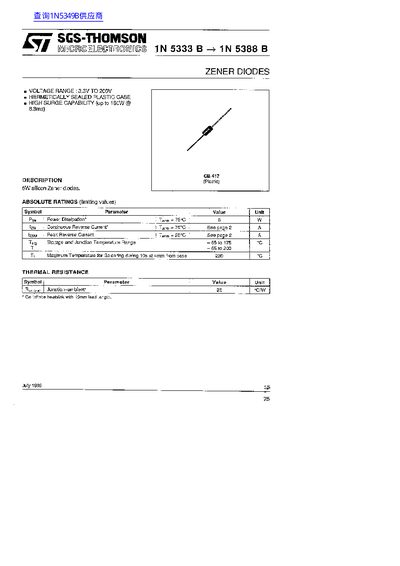

This document is a datasheet for the SGS-THOMSON 1N 5333 B and 1N 5388 B series of 5W silicon Zener diodes. These components feature a voltage range from 3.3V to 200V and are housed in a hermetically sealed plastic case. The datasheet provides absolute ratings, including power dissipation limits and thermal resistance values.
| Voltage Range | 3.3V to 200V |
|---|---|
| Case Type | Hermetically sealed plastic |
| Surge Capability | up to 180W @ 8.3ms |
| Storage Temperature Range | -65 to 175 C |
| Forward Voltage Drop | < 1.2V |
| Weight | 0.69g |
The power dissipation rating is 5W at a temperature of 75°C.
The maximum temperature for soldering during 10 seconds at 4mm from the case is 230°C.
