Microchip PIC18F2XX0/2X21/2XX5/4XX0/4X21/4XX5 Flash Microcontroller Programming Specification

This document describes the programming specifications for PIC18F2XX0/2X21/2XX5/4XX0/4X21/4XX5 devices, including the hardware requirements, pin diagrams, and programming timing requirements.

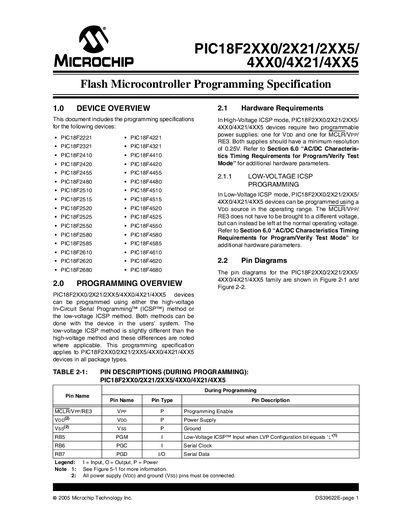

Microchip PIC18F2XX0/2X21/2XX5/4XX0/4X21/4XX5 Flash Microcontroller Programming Specification - cover page
Brand
MICROCHIP
Category
microcontrollers
Document type
Datasheet
Language
English
Pages
42
File format
PDF
File size
774 KB
Published
12 June, 2012
Updated
30 September, 2023
MD5 checksum
EDA44846A314C95BAA9BC4F1F19E5109
PDF
Microchip PIC18F2XX0/2X21/2XX5/4XX0/4X21/4XX5 Flash Microcontroller Programming Specification PDF

About this manual

This document details the programming specifications for the PIC18F2XX0/2X21/2XX5/4XX0/4X21/4XX5 Flash microcontroller family. It covers both high-voltage In-Circuit Serial Programming (ICSP) and low-voltage ICSP methods, which allow programming within the user's system.

What's inside

  • Device Overview
  • Programming Overview
  • Hardware Requirements
  • Pin Diagrams
  • Memory Maps
  • Implementation of Code Memory
  • AC/DC Characteristics

Frequently asked questions

What power supply resolution is required for high-voltage programming?

Both power supplies must have a minimum resolution of 0.25V.
