This document describes a high power relay with 30A switching capabilities, 2.5KV dielectric coil to contacts, and a heavy load capacity of up to 7200VA. It is available in Class B and Class F insulation ratings and is ISO9001/QS9000/ISO14000 certified.

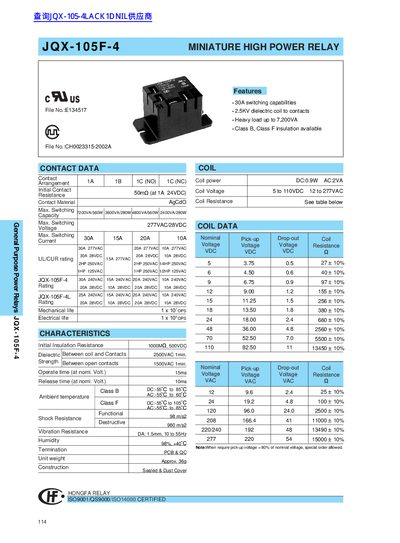

This document provides technical data for the HONGFA JQX-105F-4 miniature high power relay. Key features include a switching capacity of up to 30A and heavy load handling up to 7,200VA. The relay is available with Class B or Class F insulation standards.
| Switching capabilities | +30A |
|---|---|
| Dielectric strength (coil to contacts) | 2.5KV |
| Max load capacity | 7,200VA |
| Contact Material | AgCdOQ |
| Mechanical life | 1x 10^6 ops |
| Electrical life | 1x 10^6 ops |
| Initial Insulation Resistance | 1000MQ, 500VDC |
The relay is available with Class B or Class F insulation.
The maximum switching voltage for AC is 277VAC.
