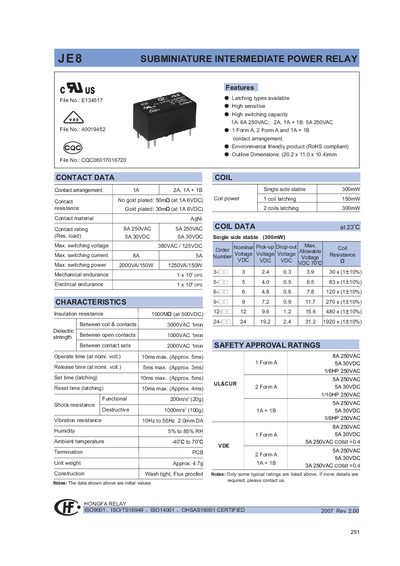

This document is a technical datasheet for the Hongfa JE8 series of subminiature intermediate power relays. It highlights key features such as available latching types, high sensitivity, and high switching capacity. The product is designed to be environmentally friendly (RoHS compliant) with specific outline dimensions provided.
| Contact arrangement options | 1A, 2A, 1A+1B |
|---|---|
| Outline dimensions | 20.2 x 11.5 x 10.4 mm |
| Contact material | AgNi |
| Mechanical endurance | 1x 10^7 ops |
| Ambient temperature range | -40°C to 70°C |
The JE8 relay offers contact arrangements of 1A, 2A, and 1A+1B.
Yes, the JE8 is an environmental friendly product and can be marked with a special code (555) when ordering.
Available nominal coil voltages include 3, 5, 6, 9, 12, and 24VDC.
