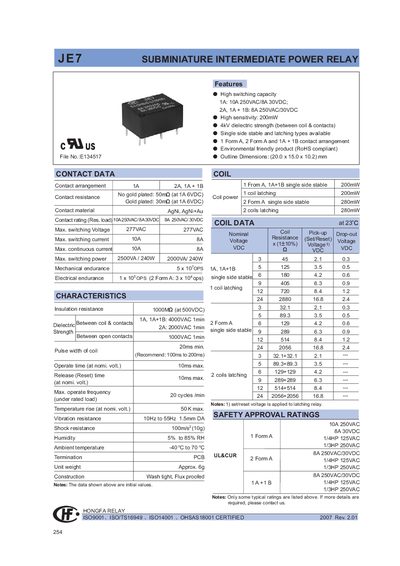

The JE7 is a subminiature intermediate power relay offering high switching capacity (10 A 250 VAC/8 A 30 VDC) and high sensitivity (200 mW). It features a 4 kV dielectric strength between coil and contacts, and is available in single‑side stable and latching types with various contact arrangements. The relay is RoHS compliant and designed for environmental friendliness.
The datasheet includes ordering information such as coil voltage options (3‑24 VDC), contact form selections (1 Form A, 2 Form A), and construction types (wash‑tight, flux‑proofed). Detailed outline dimensions, wiring diagrams, PCB layout, and safety notes are provided to aid proper installation and maintenance.
| Switching capacity | 10 A 250 VAC / 8 A 30 VDC |
|---|---|
| Contact resistance (no gold plating) | 50 mΩ at 1 A 6 VDC |
| Dielectric strength (coil‑to‑contacts) | 4 kV |
| Max switching voltage | 277 VAC |
| Max continuous current | 10 A |
| Mechanical endurance | 5 × 10⁵ operations |
The JE7 relay is offered with coil voltages of 3, 5, 6, 9, 12, and 24 VDC.
The relay provides 1 Form A (1H) and 2 Form A (2H) contact form options.
Energize the coil with the rated voltage, use an impulse width at least five times the set/reset time, and never energize the set and reset coils simultaneously.
