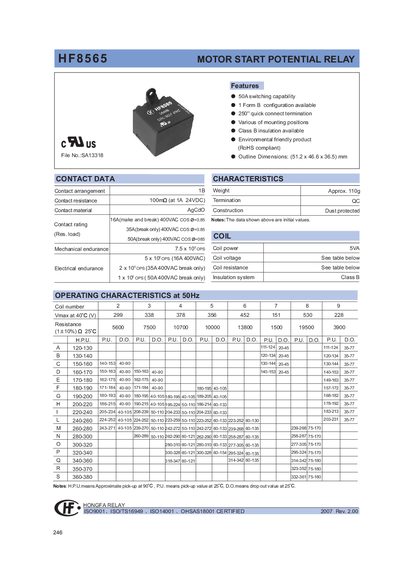

The HF8565 is an environmental‑friendly relay offering a 50 A switching capability, various mounting options, and Class B insulation. It features AgCdO contact material, a weight of about 110 g, and compact dimensions of 51.2 × 46.6 × 36.5 mm.
The datasheet includes contact and coil characteristics, operating tables for 50 Hz and 60 Hz, terminal configurations, ordering information, and wiring diagrams. It also notes RoHS compliance (special code 551) and provides mechanical endurance and coil power data.
| Switching capability | 50 A |
|---|---|
| Contact arrangement | 1B |
| Contact resistance | 100 mΩ at 1 A 24 VDC |
| Contact material | AgCdO |
| Weight | ≈ 110 g |
| Outline dimensions | 51.2 × 46.6 × 36.5 mm |
| Insulation system | Class B |
| Coil power | 5 VA |
| RoHS compliance | Yes (special code 551) |
The HF8565 relay has a 50 A switching capability.
The relay measures 51.2 mm × 46.6 mm × 36.5 mm.
The contacts are made of silver cadmium oxide (AgCdO).
Yes, it is RoHS compliant; use special code 551 when ordering.
