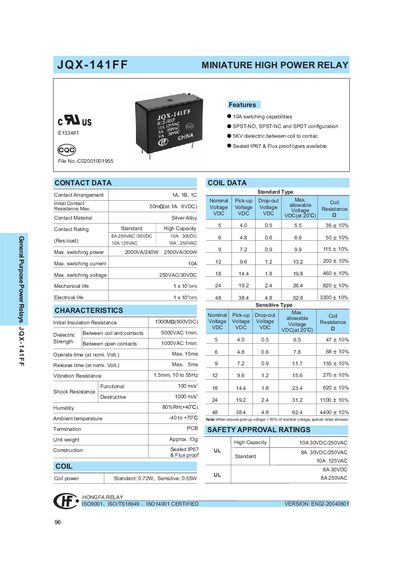

The JQX-141FF is a miniature high‑power relay offered by Hongfa. It supports 10 A switching capability and is available in SPST‑NO, SPST‑NC and SPDT configurations with a 5 kV dielectric strength between coil and contacts. The relay is sealed to IP67 and can be supplied in flux‑proof versions.
The datasheet includes detailed contact and coil data, mechanical and electrical life ratings, safety approvals (UL, TS16949, ISO 9001), ordering information, outline dimensions, wiring diagram and PCB layout, as well as environmental limits such as an operating temperature range of –40 °C to +70 °C.
| Switching capacity | 10 A |
|---|---|
| Contact configurations | SPST‑NO, SPST‑NC, SPDT |
| Dielectric strength | 5 kV |
| Ingress protection | IP67 (sealed) and flux‑proof |
| Maximum switching power | 2000 VA/240 W (standard) / 2500 VA/300 W (high capacity) |
| Maximum switching voltage | 250 VAC / 30 VDC |
| Coil power (standard) | 0.72 W |
| Operating temperature range | –40 °C to +70 °C |
| Unit weight | Approx. 139 g |
| Certifications | TS16949, ISO 9001 |
The relay is offered in SPST‑NO, SPST‑NC and SPDT configurations.
It can handle up to 2000 VA/240 W in the standard version and 2500 VA/300 W in the high‑capacity version.
The dielectric strength is 5 kV.
The relay is sealed to IP67 and is also available in a flux‑proof version.
