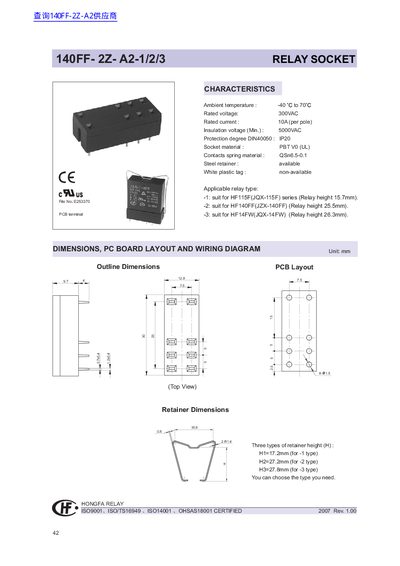

The 140FF-2Z-A2-1/2/3 relay socket is designed for use with several Hongfa relay series, including HF115F, HF140FF, and HF14FW. It offers a compact PCB‑mount solution with selectable retainer heights to match different relay heights.
Key characteristics include a rated voltage of 300 VAC, rated current of 10 A per pole, insulation voltage of 5000 VAC, and an IP20 protection degree. The socket is made from PBT (UL) material with QSn6.5‑0.1 spring contacts, and it is available with a white plastic tag. Detailed dimensions, PCB layout, and wiring diagrams are provided for easy integration.
| Ambient temperature range | -40°C to 70°C |
|---|---|
| Retainer height (type -1) | 17.2 mm |
| Retainer height (type -2) | 27.2 mm |
| Retainer height (type -3) | 27.8 mm |
It operates from –40 °C up to 70 °C.
The type‑2 socket is suitable for the HF 140FF (JZX‑140FF) series.
