The JQX-10FF series relay is a general-purpose power relay from Hongfa. It is available in 3C and 2C configurations for circuit control. It has a maximum switching current of 10A 250VAC/30VDC and a maximum switching power of 1/3HP 120VAC. It features high durability and low power consumption.
The JQX-10FF is a miniature high‑power relay offered in DPDT and 3PDT configurations with standard 8‑ or 11‑pin round terminations. It features a long life of at least 100,000 electrical operations and is available with matching sockets.

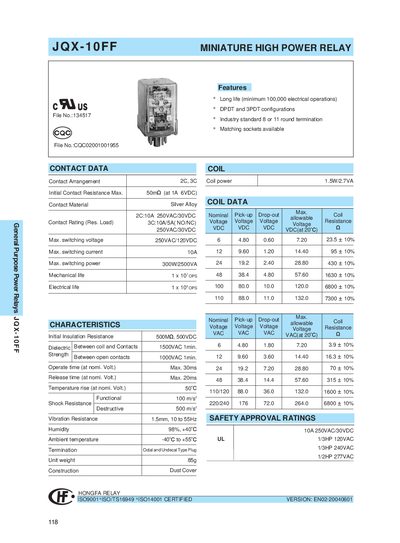

The datasheet lists detailed coil data, contact ratings, mechanical and electrical life, safety approvals, ordering options, dimensions, wiring diagrams and performance curves for both resistive and inductive loads.
| Contact Arrangement | 2C, 3C |
|---|---|
| Coil Power | 1.5W/2.7VA |
| Maximum Switching Voltage | 250VAC/120VDC |
| Maximum Switching Current | 10A |
| Mechanical Life | 1×10⁷ operations |
| Electrical Life | 1×10⁸ operations |
| Unit Weight | 85 g |
| Operating Temperature Range | -40 °C to +55 °C |
The relay can switch up to 250 VAC or 120 VDC.
It is rated for at least 10 million (1×10⁷) mechanical operations.
Coil voltages are available in DC: 6, 12, 24, 48, 100, 110 V and AC: 6, 12, 24, 48, 110/120, 220/240 V.
