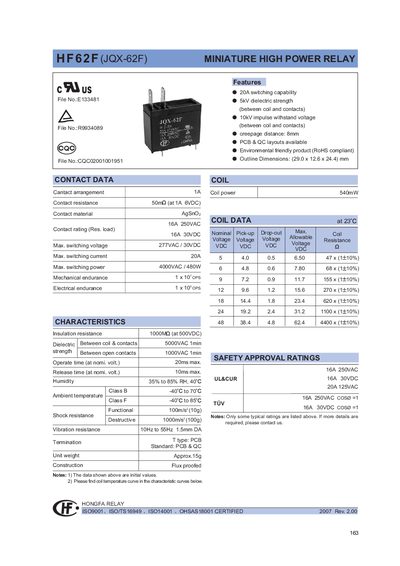

The HF62F (JQX‑62F) is a miniature high‑power relay offering 20 A switching capability, 5 kV dielectric strength, and an 8 mm creepage distance. It is RoHS‑compliant, available in PCB and QC layouts, and has compact dimensions of 29.0 × 12.6 × 24.4 mm.
The datasheet lists detailed electrical and mechanical ratings, coil voltage options (5‑48 VDC), ordering codes, wiring diagrams, and PCB layouts. Environmental and safety approvals are also included, along with characteristic curves for performance evaluation.
| Switching capability | 20 A |
|---|---|
| Dielectric strength | 5 kV |
| Creepage distance | 8 mm |
| Outline dimensions | 29.0 × 12.6 × 24.4 mm |
| Maximum switching voltage | 277 VAC / 30 VDC |
| Maximum switching current | 20 A |
| Ambient temperature range | -40 °C to 85 °C (Class F) |
| Unit weight | ≈ 15 g |
| Coil voltage options | 5, 6, 9, 12, 18, 24, 48 VDC |
The HF62F relay is rated for a maximum switching current of 20 A.
Coil voltages of 5, 6, 9, 12, 18, 24 and 48 VDC are offered.
Use the special code (555) in the order to indicate RoHS compliance.
The relay weighs approximately 15 g.
