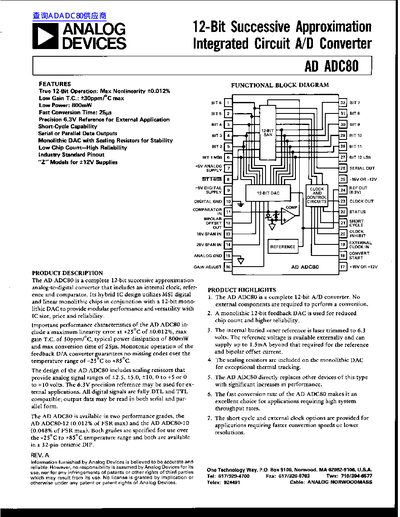

The AD ADC80 is a complete 12-bit successive approximation analog-to-digital converter that includes an internal clock, reference, and comparator. Its hybrid IC design utilizes MSI digital and linear monolithic chips in conjunction with a 12-bit monolithic DAC to provide modular performance and versatility with IC size, price, and reliability.
The device is available in two performance grades: the AD ADC80-12 (0.012% of FSR max) and the AD ADC80-10 (0.048% of FSR max). Both grades are specified for use over the -25°C to +85°C temperature range and are available in a 32-pin ceramic DIP package.
| Resolution | 12 Bits |
|---|---|
| Max Nonlinearity | 0.012% |
| Gain T.C. | +30ppm/°C max |
| Power Dissipation | 800mW |
| Max Conversion Time | 25µs |
| Internal Reference Voltage | 6.3V |
| Temperature Range | -25°C to +85°C |
| Package | 32-pin ceramic DIP |
The maximum linearity error is 0.012% of FSR for the AD ADC80-12 model.
No, the AD ADC80 is a complete converter that requires no external components to perform a conversion.
