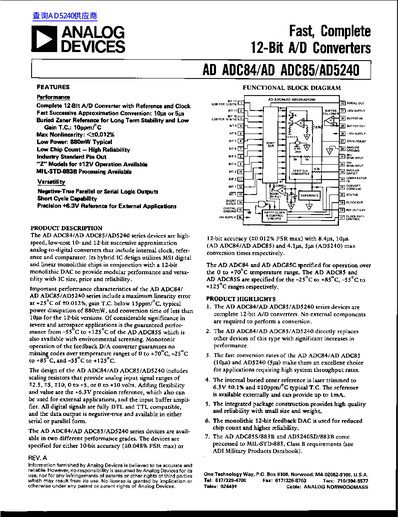

The document describes the AD ADC84/AD ADC85/AD5240 series devices as high-speed, low-cost 10- and 12-bit successive approximation analog-to-digital converters. These hybrid IC designs utilize MSI digital and linear monolithic chips in conjunction with a 12-bit monolithic DAC to provide modular performance and versatility.
| Resolution | 10/12 Bits |
|---|---|
| Max Linearity Error (12-bit) | +0.012% of FSR |
| Internal Reference Voltage | 6.3V |
| Power Supply Range (+5V) | 4.75 to 5.25 Volts |
No, the AD ADC84/AD ADC85/AD5240 series devices are complete 12-bit A/D converters where no external components are required to perform a conversion.
Yes, all digital signals are fully DTL and TTL compatible.
