LN533YAMY, LN533YKMY, LN533OAMG and LN533OKMG are 7.6mm(.3”) series 3-digit numeric displays with amber and orange lighting colors.

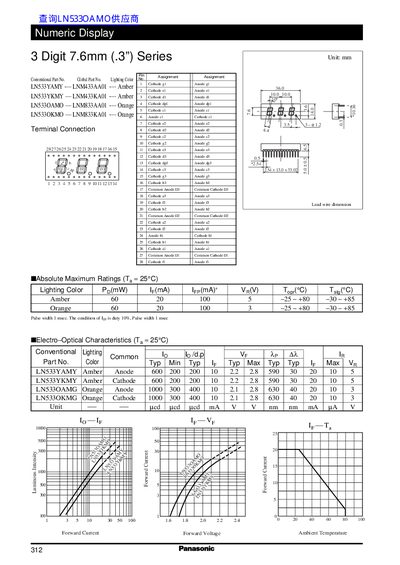

This document is a datasheet for the Panasonic SiDLN5S330AMO, a 3-digit numeric display unit with a 7.6mm (.3") digit size. It provides part number assignments for various lighting colors (Amber and Orange) and defines terminal connections for anode and cathode pins.
The datasheet lists absolute maximum ratings and electro-optical characteristics, including forward current, forward voltage, and luminous intensity for different part numbers. It also includes specific safety cautions regarding the Gallium Arsenide (GaAs) material used in the product and export regulations.
| Digit Size | 7.6mm (.3") |
|---|---|
| Lighting Color | Amber, Orange |
| Forward Current (Amber) | 20 mA |
| Forward Voltage (Amber) | 2.2 V (Typ) |
| Material | Gallium arsenide (GaAs) |
The digit size is 7.6mm (.3"), as indicated in the series title.
Do not burn, destroy, cut, crush, or chemically decompose the product because it contains harmful Gallium Arsenide (GaAs) material.
Yes, an export permit needs to be obtained from the competent authorities of the Japanese Government if the product is controlled under the "Foreign Exchange and Foreign Trade Law".
