The FCT162245T/FCT16245T/FCT166245T are a high-performance, low-power, 16-bit dual-channel differential transceivers designed for on-board interface applications.

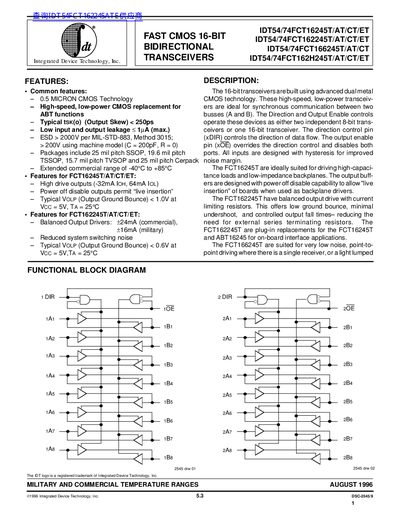

This document is a technical datasheet for the IDT54/74FCT16245T series of Fast CMOS 16-bit Bidirectional Transceivers manufactured by Integrated Device Technology, Inc. These devices are designed as high-speed, low-power replacements for ABT functions and utilize 0.5 micron CMOS technology.
| Technology | 0.5 MICRON CMOS Technology |
|---|---|
| Output Skew (tsk(o)) | < 250ps |
| Input Leakage (max.) | < 1A |
| ESD Rating (MIL-STD-883) | > 2000V |
| Commercial Temperature Range | -40°C to +85°C |
| Military Temperature Range | -55°C to +125°C |
| Supply Voltage (Vcc) | 5.0V ± 10% |
The typical output skew (tsk(o)) is less than 250ps.
The FCT16245T features high drive outputs with -32mA IOH and 64mA IOL.
Yes, power off disable outputs permit 'live insertion' of boards.
