Start here

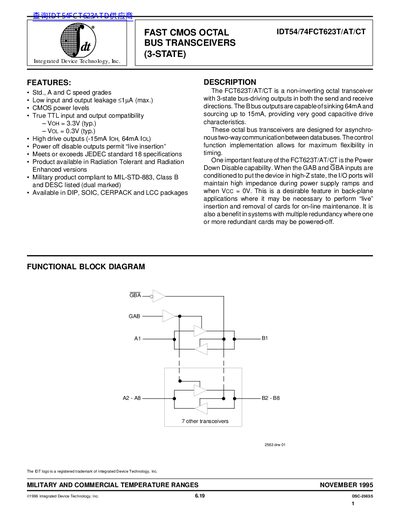

Integrated Device Technology IDT54/74FCT623T/AT/CT Octal Bus Transceiver Datasheet
This document is a technical datasheet for the IDT54/74FCT623T, AT, and CT series of fast CMOS octal bus transceivers. These devices are designed for asynchronous two-way communication between data buses with true TTL input and output compatibility.
Key features include standard, A, and C speed grades; low input and output leakage currents; high drive outputs capable of sinking 64mA and sourcing up to 15mA; and a power-off disable capability that permits live insertion. The transceivers are available in commercial and military temperature ranges across DIP, SOIC, CERPACK, and LCC packages.
Integrated Device Technology IDT54 specifications
| Drive Output Current (Sink) | 64mA |
|---|---|
| Drive Output Current (Source) | 15mA |
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Military) | -55°C to +125°C |
| Supply Voltage | 5.0V ± 5% (Commercial) |
| Input HIGH Level | 2.0 V |
| Input LOW Level | 0.8 V |
Source: Integrated Device Technology IDT54/74FCT623T/AT/CT Octal Bus Transceiver Datasheet
All Integrated Device Technology IDT54 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Integrated Device Technology IDT54/74FCT623T/AT/CT Octal Bus Transceiver Datasheet 6 p
- Integrated Device Technology IDT54/74FCT138 FAST CMOS 1-of-8 Decoder Datasheet 6 p
- Integrated Device Technology IDT54/74FCT16245T Bidirectional Transceiver Datasheet 10 p
- Integrated Device Technology IDT54/74FCT16245T/AT/CT/ET Datasheet 11 p
- Integrated Device Technology Inc IDT54/74FCT373T/AT/CT/DT - 2373T/AT/CT IDT54/74FCT533T/AT/CT 8 p
- Integrated Device Technology IDT54/74FCT374/534/574 Datasheet 8 p
- Integrated Device Technology IDT54/74FCT827AT/BT/CT/DT & IDT54/74FCT2827AT/BT/CT Datasheet 7 p
- Integrated Device Technology Inc IDT54/74FCT240/A/C IDT54/74FCT241/A/C IDT54/74FCT244/A/C IDT54/74FCT540/A/C IDT54/74FCT541/A/C Data Sheet 8 p
- Integrated Device Technology Inc IDT54/74FCT16244T/AT/CT/ET IDT54/74FCT162244T/AT/CT/ET 9 p
- Integrated Device Technology Inc IDT54/74FCT16501AT/CT/ET IDT54/74FCT162501AT/CT/ET IDT54/74FCT162H501AT/CT/ET 9 p
- Integrated Device Technology Inc IDT54/74FCT373T/AT/CT/DT - 2373T/AT/CT IDT54/74FCT533T/AT/CT IDT54/74FCT573T/AT/CT/DT - 2573T/AT/CT 9 p
- Integrated Device Technology IDT54/74FCT240T/AT/CT/DT - 2240T/AT/CT IDT54/74FCT244T/AT/CT/DT - 2244T/AT/CT IDT54/74FCT540T/AT/CT IDT54/74FCT541/2541T/AT/C Manual 9 p
Questions answered in these manuals
What is the power-off disable capability used for?
It allows for live insertion and removal of cards in back-plane applications by maintaining high impedance during power supply ramps.
From: Integrated Device Technology IDT54/74FCT623T/AT/CT Octal Bus Transceiver Datasheet
Are these transceivers compatible with TTL?
Yes, they feature true TTL input and output compatibility.
From: Integrated Device Technology IDT54/74FCT623T/AT/CT Octal Bus Transceiver Datasheet
What is the difference between the IDT54/74FCT138, 138A, and 138C models?
The IDT54/74FCT138A is 35% faster than the standard FAST speed, and the IDT54/74FCT138C is 40% faster than the standard FAST speed.
From: Integrated Device Technology IDT54/74FCT138 FAST CMOS 1-of-8 Decoder Datasheet
Can these decoders be expanded to a 1-of-32 decoder?
Yes, the multiple enable function allows easy parallel expansion to a 1-of-32 decoder using four devices and one inverter.
From: Integrated Device Technology IDT54/74FCT138 FAST CMOS 1-of-8 Decoder Datasheet
What is the typical output skew for these transceivers?
The typical output skew (tsk(o)) is less than 250ps.
From: Integrated Device Technology IDT54/74FCT16245T Bidirectional Transceiver Datasheet
What are the drive capabilities for the FCT16245T?
The FCT16245T features high drive outputs with -32mA IOH and 64mA IOL.
From: Integrated Device Technology IDT54/74FCT16245T Bidirectional Transceiver Datasheet
