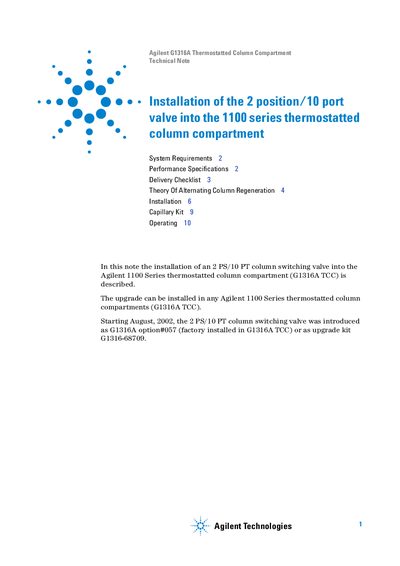

Agilent Installation of the 2 position/10 port valve into the 1100 series thermostatted column compartment Manual

This file describes the installation of the 2 PS/10 PT column switching valve into the Agilent 1100 Series thermostatted column compartment (G1316A TCC).

Brand: Agilent
Document type: Installation Guide
Language: English
Pages: 12
File format: PDF
File size: 456 KB
Published: 08 June, 2012
Updated: 01 October, 2023
Model: 1100 Series
MD5 checksum: A4B1939332C2B71D02D10856502BF281
PDF: Agilent Installation of the 2 position/10 port valve into the 1100 series thermostatted column compartment Manual PDF

About this manual

This document provides instructions for installing the 2 position/10 port valve (part number G1316-68709) into an Agilent 1100 Series Thermostatted Column Compartment (G1316A). The upgrade allows for alternating column regeneration, which increases sample throughput by flushing and equilibrating a second column while the first is in use. Installation requires specific firmware revisions for the G1316A TCC control module and the G1323B control module.

What's inside

System Requirements
Performance Specifications
Delivery Checklist
Theory Of Alternating Column Regeneration
Installation Steps
Firmware Update
Capillary Kit

Frequently asked questions

What is the purpose of installing this valve upgrade?

The installation allows for alternating column regeneration to increase sample throughput and efficiency.

Which Agilent system models are compatible with this upgrade kit?

This upgrade can be installed in any Agilent 1100 Series thermostatted column compartments.

What tools are required for the installation procedure?

A Pozi-driv #2 screwdriver is needed to perform the installation steps.

Download PDF (456 KB)
