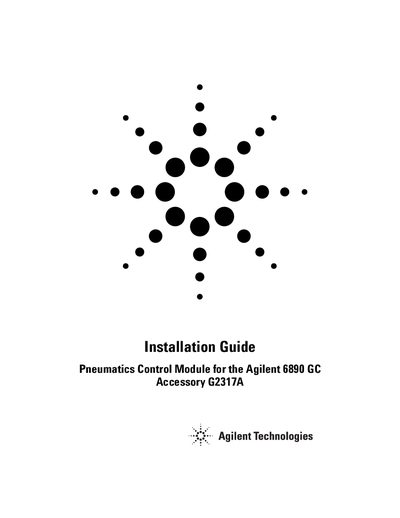

Agilent G2317A Pneumatics Control Module Installation Guide for the Agilent 6890 GC

This document is the user manual for the pneumatics control module, which is an accessory for the 6890 gas chromatograph (GC).

Brand: Agilent
Document type: Installation Guide
Language: English
Pages: 20
File format: PDF
File size: 1 MB
Published: 08 June, 2012
Updated: 30 September, 2023
MD5 checksum: 5F6E9BB864A8E2F5E1E9B46581F8D162
PDF: Agilent G2317A Pneumatics Control Module Installation Guide for the Agilent 6890 GC PDF

About this manual

The document serves as an installation and operation manual for the Agilent G2317A Pneumatics Control Module (PCM), which replaces the standard electronic flow control module in one channel of the Agilent 6890 GC. It details system requirements, including software compatibility with ChemStation revision A.04.02 or later.

What's inside

Safety Information
System Requirements
Parts List
Preparing the GC
Installing the PCM
Restoring the GC

Frequently asked questions

What specific instrument does this Pneumatics Control Module replace?

The module replaces the standard electronic flow control module (ECM) for one channel on the Agilent 6890 GC.

What software revision is required to use this module?

The ChemStation software must be revision code A.04.02 or later.

What tool is required to install this module?

A T-20 Torx screwdriver is needed for the installation steps.
