This document describes the features and characteristics of the BZW03 series voltage regulator diodes, including glass passivated, high maximum operating temperature, low leakage current, excellent stability, etc.

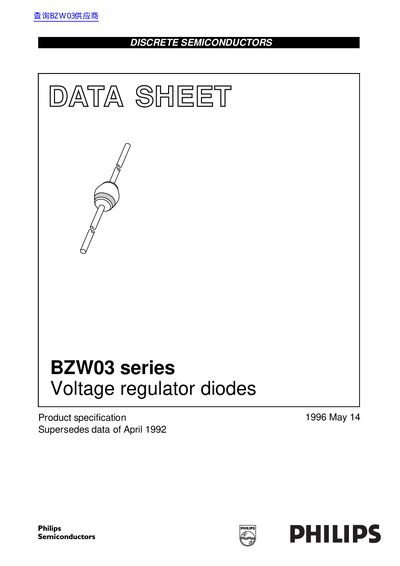

This document is a product specification datasheet for the Philips BZW03 series of discrete semiconductor voltage regulator diodes. It details features such as glass passivation and high maximum operating temperatures.
The text provides comprehensive electrical characteristics tables listing specific types (e.g., C7V5 to C470) with their working voltages, temperature coefficients, and current ratings for both voltage regulator and transient suppressor applications.
| Total power dissipation (Tip = 25 °C) | 6.00 W |
|---|---|
| Storage temperature range | -65 +175 [°C] |
| Forward voltage (Ir = 1A) | 1.2 V |
| Zener working voltage range | 7.5 to 270 V for 38 types |
| Transient suppressor stand-off voltage range | 6.2 to 430 V far 45 types |
The Zener working voltage range is from 7.5 to 270 V.
The Zener working voltage ranges from 7.5 to 270 V across 38 types.
The device can be stored between -65 °C and +175 °C.
