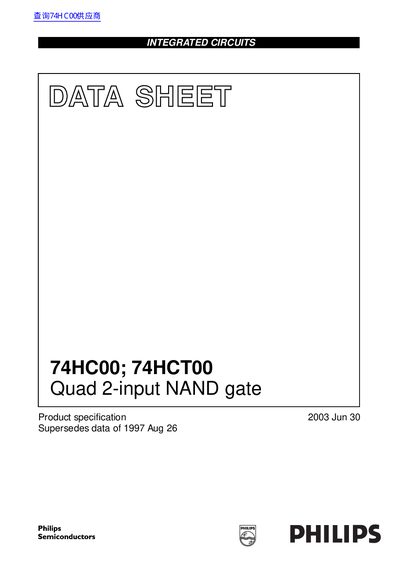

This document describes the integrated circuit products of the 74HC00 and 74HCT00 models. They are high-speed Si-gate CMOS devices with quad 2-input NAND function. They comply with JEDEC standards and have ESD protection. The product specifications range from -40 to +85°C and -40 to +125°C.
The document describes the 74HC00/74HCT00 as high-speed Si-gate CMOS devices that are pin compatible with low power Schottky TTL (LSTTL). These integrated circuits provide a 2-input NAND function and comply with JEDEC standard no. 8-1A.
| Function | 2-input NAND function |
|---|---|
| Operating Temperature Range (Extended) | -40 to +125 °C |
The DIP 14 package has 14 pins.
