PESD5V0S1BA/BB/BL is a low capacitance bidirectional ESD protection diode from Philips. It is designed in ultra small SMD plastic packages and can protect one signal line from ESD and other transients.

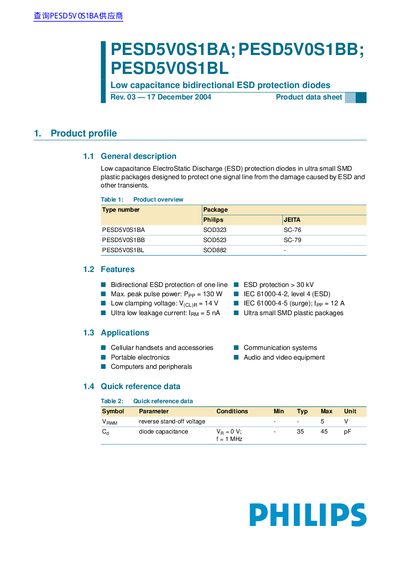

The document describes the Philips PESD5V0S1BA/BB/BL series of low capacitance ElectroStatic Discharge (ESD) protection diodes. These devices are designed in ultra-small SMD plastic packages to protect a single signal line from damage caused by ESD and other transients. The diodes offer bidirectional protection with a peak pulse power capability of up to 130 W and an ESD protection rating greater than 30 kV according to IEC 61000-4-2 standards.
| Reverse stand-off voltage | 5 V |
|---|---|
| Diode capacitance | 3 to 54 pF |
| Peak pulse power | 130 W |
| ESD protection level | > 30 kV |
| Clamping voltage | 14 V |
| Peak pulse current | 12 A |
| Reverse leakage current | 5 nA |
| Junction temperature | -65 to +150 °C |
The series is available in SOD323 (SC-76), SOD523 (SC-79), and SOD882 packages.
The maximum peak pulse power rating is 130 W for an 8/20 µs waveform.
The device provides ESD protection greater than 30 kV according to IEC 61000-4-2.
