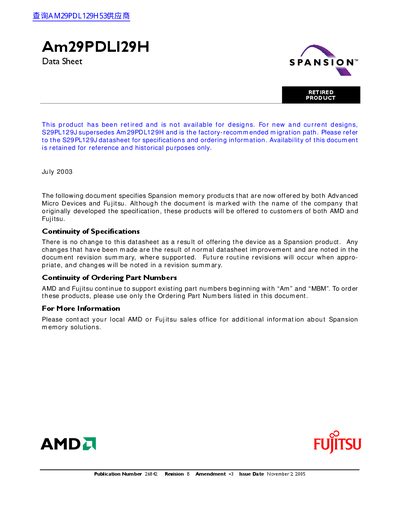

The Am29PDL129H Data Sheet is a technical specification sheet for Spansion memory products. This product has been discontinued and is not recommended for use.
The Spansion Am29PDL129H is a retired 128 Megabit (8 M x 16-Bit) CMOS Flash Memory device designed for 3.0 Volt-only operation. It features Page Mode and Simultaneous Read/Write capabilities, organized as 8 Mwords with dual chip enable inputs to control selection of each half of the memory space.
The device is manufactured on a 0.13 µm process technology and offers fast page access times as low as 20 ns. It includes FlexBank Architecture allowing up to two simultaneous operations per device across four separate banks, and supports SecSi (Secured Silicon) sector regions for data protection.
| Memory Capacity | 128 Megabit (8 M x 16-Bit) |
|---|---|
| Voltage Range | 2.7 to 3.6 volt |
| Page Access Time | 20 ns |
| Random Access Time | 55 ns |
| Active Read Current | 45 mA |
| Program/Erase Current | 15 mA |
| Standby Mode Current | 1 µA |
| Data Retention | 20-year at 125°C |
No, this product has been retired and is not available for designs.
The S29PL129J supersedes Am29PDL129H and is the factory-recommended migration path.
No, a 12.0 V Vpp is not required for write or erase operations.
