This is a product specification sheet that describes the features and characteristics of the 74LVC2G04 dual inverter, including wide supply voltage range, 5V tolerant input/output, high noise immunity, compliance with JEDEC standards, ESD protection, low power consumption, etc.

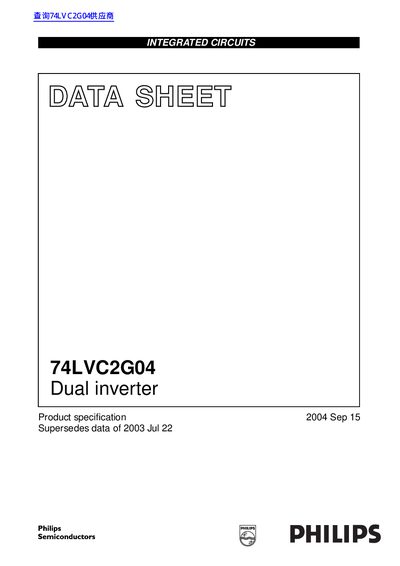

This document is a product specification datasheet for the Philips 74LVC2G04, a high-performance, low-power, low-voltage Si-gate CMOS device. It functions as a dual inverter with two independent inputs and outputs.
The IC supports a wide supply voltage range from 1.65 V to 5.5 V and features 5 V tolerant input/output levels for interfacing with standard logic families. The datasheet details electrical characteristics, including propagation delays, input/output voltages, and current limits across various operating temperatures.
| Supply Voltage Range | 1.65 V to 5.5 V |
|---|---|
| Output Drive Current | +/- 24 mA (at Voc = 3.0 V) |
| Input Capacitance | 2.5 pF |
The device supports a wide supply voltage range from 1.65 V to 5.5 V.
The recommended operating conditions specify a maximum supply voltage of 5.5 V.
The typical propagation delay from input to output is 2.2 ns under these conditions.
The device operates in an ambient temperature range from -40 °C to +125 °C.
