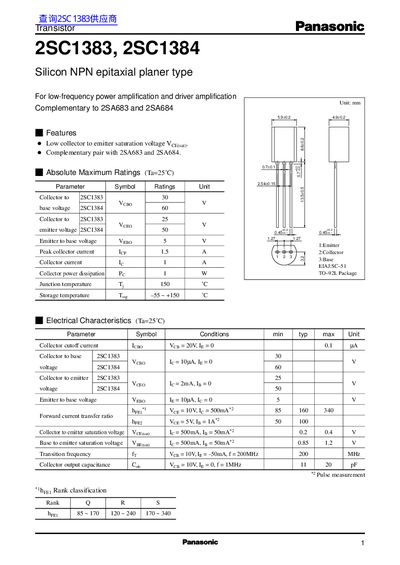

2SC1383, 2SC1384 are silicon NPN epitaxial planar type transistors for low-frequency power amplification and driver amplification.
This document provides technical specifications for the Panasonic 2SC1383 and 2SC1384, which are complementary silicon NPN epitaxial planar type transistors. They are designed for low-frequency power amplification and driver amplification applications.
The datasheet details absolute maximum ratings, electrical characteristics such as current transfer ratios and saturation voltages, and includes graphical data on collector current versus voltage and temperature.
| Transistor Type | Silicon NPN epitaxial planer type |
|---|---|
| Application | Low-frequency power amplification and driver amplification |
| Complementary Pair | 2SA683 and 2SA684 |
| Collector Power Dissipation (Pe) | 1 W |
| Package Type | TO-92L Package |
| Junction Temperature (Tj) | 150 °C |
| Transition Frequency (fT) | 200 MHz |
The peak collector current rating is 15 A.
Each device has a collector power dissipation limit of 1 W.
