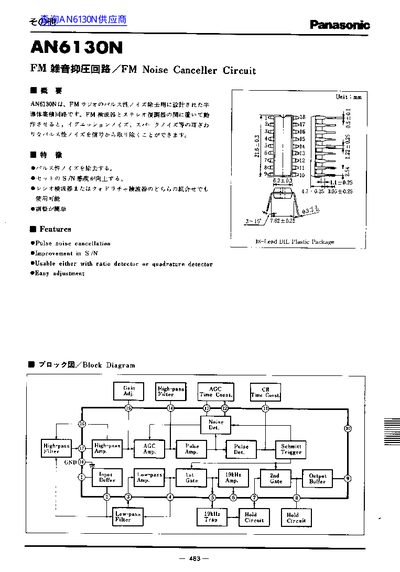

The document describes the Panasonic AN6130N, a circuit designed for FM noise cancellation. It is available in an 18-lead DIL plastic package and supports both ratio detector and quadrature detector systems to improve signal-to-noise ratios.
Key features include pulse noise cancellation capabilities and easy adjustment settings. The datasheet provides detailed pin configurations, absolute maximum ratings, electrical characteristics, test circuits, and application circuit diagrams for the integrated circuit.
| Package Type | 18 Lead DIL Plastic Package |
|---|---|
| Operating Voltage (Vcc) | 9 V |
| Supply Current (Icc) | 41.5 mA |
| Storage Temperature Range | -55 ~ +125 C |
It can be used either with a ratio detector or a quadrature detector.
The unit operates between -30°C and +75°C at a storage temperature of 25°C.
The typical gain (Gv) for the signal system is 1.5 dB when Vi=500mV.
