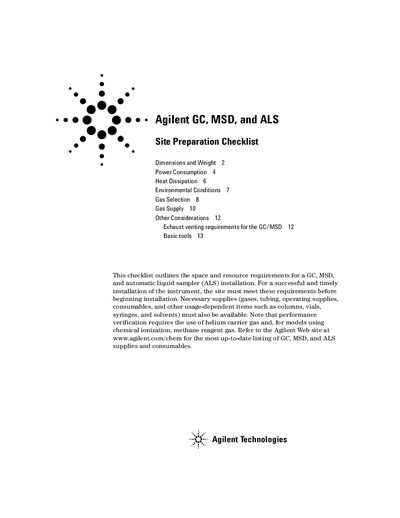

This document outlines the space and resource requirements for a GC, MSD, and automatic liquid sampler (ALS) installation
This document outlines the site preparation requirements for installing Agilent GC, MSD, and ALS systems. It details space dimensions, power consumption, heat dissipation, environmental conditions, gas selection, and basic tools needed. The checklist ensures proper installation and optimal performance by specifying clear physical, electrical, and environmental constraints for each component.
The guide includes tables for dimensions, power requirements, heat dissipation, and environmental tolerances, as well as notes on gas compatibility and toolkits. It also references Agilent’s website for updated supplies and consumables, and includes disclaimers regarding warranties and liability.
| Height for 5975 Series MSDs | 41 cm (16 in) |
|---|---|
| Weight for 7890A Series GCs | 50 kg (112 lb) |
| Power Consumption for 5975 Series MSD | 1100 VA (400 VA for foreline pump only) |
| Operating Temperature for 5975 Series | 15 to 36 °C (59 to 95 °F) |
It requires 120 VAC (±10%/+5%), 50/60 Hz, 8 amps, 1100 VA (400 VA for foreline pump only).
Hydrogen, Helium, or Nitrogen can be used as carrier gases, with Argon/Methane or Nitrogen as makeup gases.
A total of 244 cm (8 ft) of bench space should be available for a full GC/MSD system including operational access and a printer.
