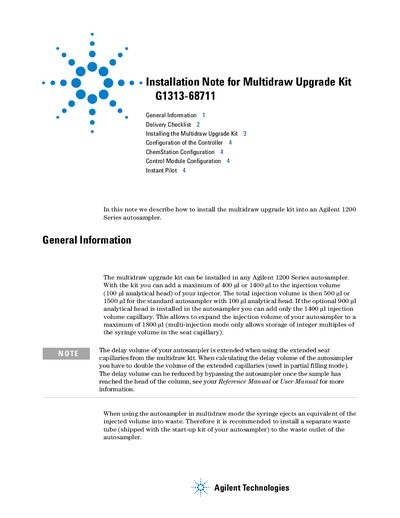

This note describes how to install the multidraw upgrade kit into an Agilent 1200 Series autosampler.
This document provides step-by-step instructions for installing the Multidraw Upgrade Kit into an Agilent 1200 Series autosampler. It includes a delivery checklist, installation steps, and configuration instructions for the controller, ChemStation, Control Module, and Instant Pilot software. The kit allows injection volumes up to 1800 ul in multidraw mode, with specific capillary options for 400 ul or 1400 ul.
The guide also explains how to configure the autosampler software to recognize the extended capillary and manage injection volumes, including how to adjust delay volume and connect waste tubing to avoid siphoning effects.
| Maximum Injection Volume | 500 ul or 1500 ul (standard autosampler with 100 ul analytical head) |
|---|---|
| Extended Capillary Options | 400 ul or 1400 ul |
The maximum injection volume is 500 ul or 1500 ul for the standard autosampler with 100 ul analytical head.
The kit includes extended seat capillaries (400 ul and 1400 ul), a union, and instructions for installation.
Connect the waste tube to the waste outlet of the autosampler to avoid siphoning effects.
