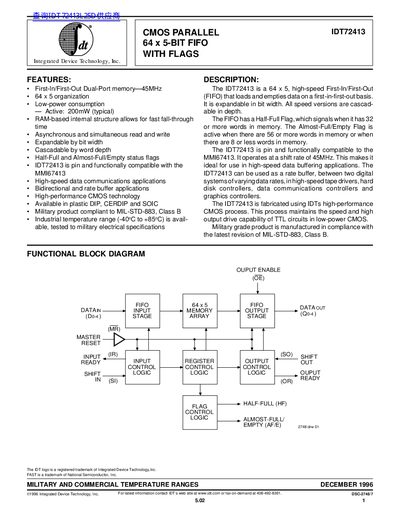

The IDT72413 is a 64x5, high-speed First-In/First-Out (FIFO) that loads and empties data on a first-in-first-out basis. It is expandable in bit width. All speed versions are cascad- able in depth. The FIFO has a Half-Full Flag, which signals when it has 32 or more words in memory. The Almost-Full/Empty Flag is active when there are 56 or more words in memory or when there are 8 or less words in memory. The IDT72413 is pin and functionally compatible to the MMI67413. It operates at a shift rate of 45MHz. This makes it ideal for use in high-speed data communications, bidirectional and rate buffer applications.
The IDT72413 is a 64x5-bit FIFO with flags, designed for high-speed data buffering. It supports asynchronous read and write operations and is compatible with the MMI67413. It operates at 45MHz and is fabricated using high-performance CMOS technology. The device includes Half-Full and Almost-Full/Empty status flags and is available in DIP, CERDIP, and SOIC packages. It is compliant with MIL-STD-883, Class B, and available in both commercial and military temperature ranges.
| Organization | 64 x 5 |
|---|---|
| Operating Frequency | 45MHz |
| Power Consumption | 200mW (typical) |
| Package Types | Plastic DIP, CERDIP, SOIC |
| Temperature Range | Commercial: 0°C to +70°C, Military: -55°C to +125°C |
| Supply Voltage | 5.0V ±10% |
| Input High Voltage | 2.0V |
The IDT72413 operates at a shift rate of 45MHz.
The IDT72413 is available in plastic DIP, CERDIP, and SOIC packages.
The IDT72413 is available in both commercial (0°C to +70°C) and military (-55°C to +125°C) temperature ranges.
The supply voltage for the IDT72413 is 5.0V ±10%.
