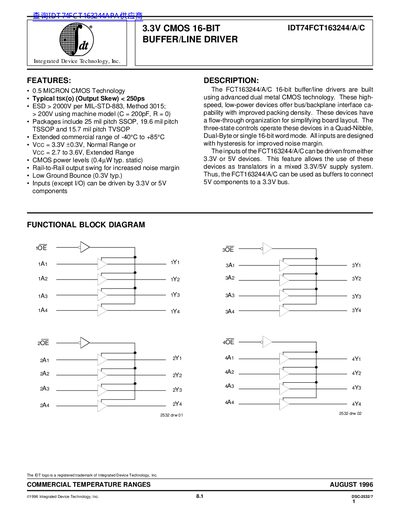

This datasheet provides functional block diagram and feature information for the FCT163244/A/C 16-bit buffer/line driver, such as 0.5-micron CMOS process, typical output skew <250ps, ESD>2000V, packages include 25-mil pitch SSOP, 19.6-mil pitch TSSOP, and 15.7-mil pitch TVSOP, extended commercial range -40°C to +85°C, VCC=3.3V±0.3V, normal range or VCC=2.7 to 3.6V, extended range, CMOS power levels (0.4µW typical static).
The IDT74FCT163244/A/C is a 3.3V CMOS 16-bit buffer/line driver designed for high-speed, low-power bus and backplane interface applications. Built using 0.5 micron CMOS technology, these devices offer flow-through organization and operate in Quad-Nibble, Dual-Byte, or single 16-bit word modes. They feature rail-to-rail output swing and inputs designed with hysteresis for improved noise margins.
| Technology | 0.5 MICRON CMOS Technology |
|---|---|
| Output Skew | < 250ps |
| ESD Rating | > 2000V |
| Temperature Range | -40°C to +85°C |
| Supply Voltage | 2.7V to 3.6V |
| Output Current | -60 to +60 mA |
| Propagation Delay | 1.5 to 6.5 ns |
The device operates in an extended commercial range from -40°C to +85°C.
Yes, inputs (except I/O) can be driven by 3.3V or 5V components.
The typical output skew is less than 250ps.
