DSC-4602/3 is a type of IDT54/74FCT543 series products, which is a non-inverting eight-channel transceiver. This transceiver has CMOS low power consumption and FAST speed, and can work normally in full temperature and voltage range. This product can be used for military and commercial purposes, and has strong radiation resistance.

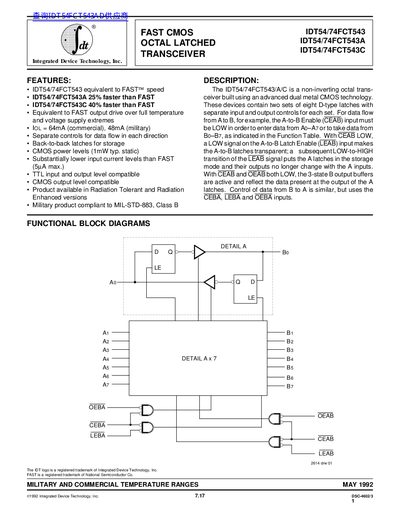

This document provides technical specifications for the IDT54/74FCT543 family of FAST CMOS octal latched transceivers. The family includes the standard IDT54/74FCT543, the faster IDT54/74FCT543A (25% faster), and the super-fast IDT54/74FCT543C (40% faster). These devices are built using advanced dual metal CMOS technology and feature back-to-back latches with separate controls for data flow in each direction.
| Output Drive Current (Commercial) | 64mA |
|---|---|
| Output Drive Current (Military) | 48mA |
| Operating Temperature (Military) | -55 to +125 °C |
| Power Supply Voltage | 5.0V |
The IDT54/74FCT543A is 25% faster than the standard IDT54/74FCT543.
The IDT54/74FCT543C is 40% faster than the standard IDT54/74FCT543.
Yes, the device features TTL input and output level compatibility.
