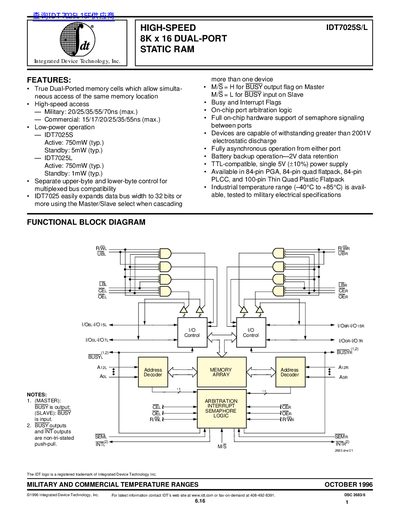

IDT7025S/L is a high-speed dual-port static RAM chip produced by Integrated Device Technology, Inc. It has true dual-port memory cells that allow simultaneous access to the same memory location. It has low power consumption of up to 750 mW and a high access speed of 20/25/35/55/70 ns.
The document describes the IDT7025 as a high-speed 8K x 16 Dual-Port Static RAM designed for use as a stand-alone 128K-bit memory or as a Master/Slave component in 32-bit systems. It features true dual-porting allowing simultaneous access to the same memory location and includes separate upper-byte and lower-byte control for multiplexed bus compatibility.
The datasheet provides detailed information on pin configurations, truth tables for read/write and semaphore control, absolute maximum ratings, and DC electrical characteristics. It covers both standard (S) and low-power (L) versions, specifying performance metrics such as access times ranging from 15ns to 70ns depending on the grade.
| Memory Capacity | 8K x 16 |
|---|---|
| Access Time (Commercial) | 15/17/20/25/35/55ns |
| Access Time (Military) | 20/25/35/55/70ns |
| Active Power (IDT7025S) | 750mW |
| Standby Power (IDT7025L) | 1mW |
| Supply Voltage | 5.0V + 10% |
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Military) | -55°C to +125°C |
The typical active power consumption for the IDT7025S is 750mW.
Yes, low-power versions offer battery backup data retention capability with typical power consumption of 500uW from a 2V battery.
The device is available in 84-pin PGA, 84-pin quad flatpack, 84-pin PLCC, and 100-pin Thin Quad Plastic Flatpack.
