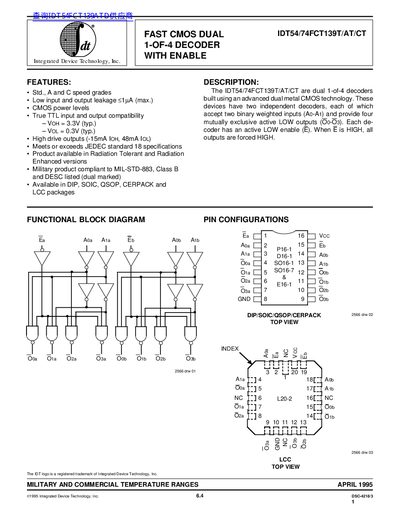

This document is the datasheet of IDT54/74FCT139T/AT/CT. It is a dual 1-of-4 decoder built using an advanced dual metal CMOS technology. It has two independent decoders, each of which accepts two binary weighted inputs (A0-A1) and provides four mutually exclusive active LOW outputs (O0-O3). Each de- coder has an active LOW enable (E). When E is HIGH, all outputs are forced HIGH.
This document is a technical datasheet for the IDT54/74FCT139T/AT/CT, which are dual 1-of-4 decoders built using advanced dual metal CMOS technology. Each device contains two independent decoders that accept binary weighted inputs and provide four mutually exclusive active LOW outputs.
| Technology | advanced dual metal CMOS technology |
|---|---|
| Outputs | four mutually exclusive active LOW outputs |
| Enable Input | active LOW enable (E) |
| Input Leakage | < 1pA (max.) |
| Output High Voltage (Typ) | 3.3V |
| Output Low Voltage (Typ) | 0.3V |
| Drive Current (IOL) | 48mA |
| Temperature Range (Commercial) | 0°C to +70°C |
| Temperature Range (Military) | -55°C to +125°C |
Yes, they have true TTL input and output compatibility.
The device has a maximum power dissipation rating of 0.5 W.
