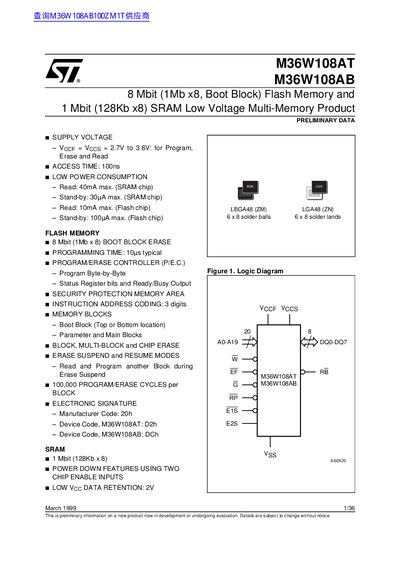

M36W108AT and M36W108AB are 8Mbit(1Mb x8, Boot Block)Flash Memory and 1Mbit(128Kb x8)SRAM Low Voltage Multi-Memory Product.
The document describes the M36W108AT and M36W108AB as a multi-chip device containing an 8 Mbit boot block Flash memory and a 1 Mbit SRAM. The device is offered in LBGA48 and LGA48 packages with a 1.0mm pitch.
The Flash component supports block, multi-block, and chip erase modes, as well as suspend and resume operations. It features an electronic signature for identification and operates on a single supply voltage of 2.7V to 3.6V.
| Memory Capacity (Flash) | 8 Mbit (1Mb x 8) |
|---|---|
| Memory Capacity (SRAM) | 1 Mbit (128Kb x 8) |
| Supply Voltage | 2.7V to 3.6V |
| Access Time | 100ns |
| Operating Temperature Range | -40 to 85 °C |
The manufacturer code is 20h EIS and the device code is D2h E28.
The manufacturer code is 20h EIS and the device code is DCh.
Yes, the device supports Read and Program of another Block during Erase Suspend mode.
